AquaSafe water gabions – The next generation of mobile flood protection

Description

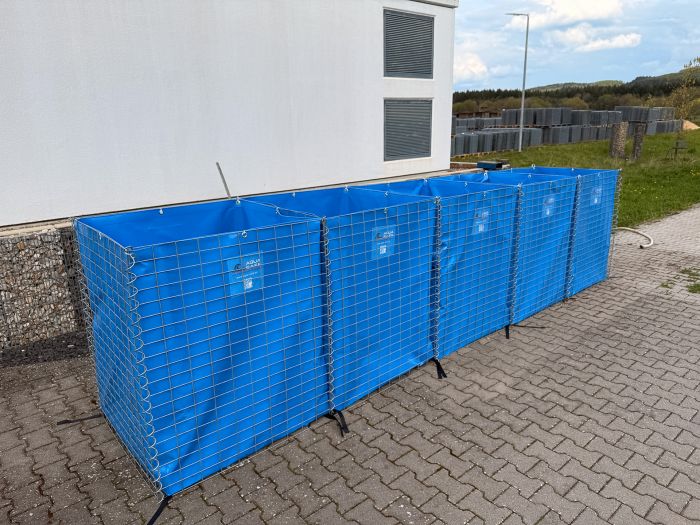

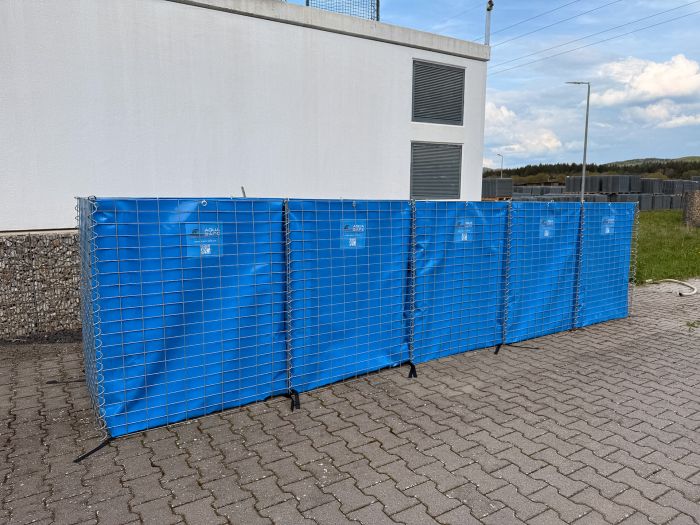

The AquaSafe system combines highly stable wire mesh with patented polymer containers. These containers are filled with water on site, ensuring a high level of stability and impermeability – without the need for heavy machinery or complex ground work. Thanks to the sophisticated design, the system can be set up easily and dismantled just as quickly.

The wire mesh is made of corrosion-resistant steel with a zinc-aluminum coating that guarantees a service life of over 100 years. The polymer containers can be used several times and are characterized by their robustness and easy handling. AquaSafe is designed to withstand even extreme conditions – tested and proven under simulated flash floods, wind speeds of up to 170 km/h and hurricane impact tests.

Fast assembly – maximum efficiency

The AquaSafe system sets new standards in terms of speed and user-friendliness:

• Installation: 50 linear meters can be installed in one hour with just four people. Thanks to the modular design, the system can be easily adapted to different terrains and application requirements.
• Dismantling: Dismantling is just as easy – 50 linear meters can be repacked by two people in just one hour. There is no residue or hazardous waste, which makes the system particularly environmentally friendly.

AquaSafe is optimally prepared for transportation and storage. A packaging unit with a length of 50 meters fits on a standard pallet (1x1x1.8 m). This makes the system space-saving and flexible to use.

Possible uses and applications

The AquaSafe water gabion is versatile and offers solutions for a variety of scenarios:

1. Flood protection: securing residential areas, public infrastructure and commercial properties.
2. Crisis operations: Rapid detour or retention of water in the event of flooding and flash floods.
3. Hazardous substance management: Temporary storage of contaminated liquids such as oil, diesel or chemicals.
4. Forest firefighting: Storage of extinguishing water for operations in remote areas.

Technical data at a glance

• Material: Zinc/aluminum-coated steel (wire mesh), multi-layer polymer containers.
• Water column height: Tested up to 0.7 m.
• Resistance: Withstands wind loads of up to 170 km/h and hurricane impact of 4.5 kg at 60 km/h.
• Packaging: Up to 50 m in a pallet (1x1x1.8 m).

The high stability and impermeability of the system is ensured by the inherent mass of the water-filled containers. This enables immediate sealing of the contact area and prevents undermining – a common problem with alternative flood protection systems.

Product variants

AquaSafe 5 m:
Ideal for small areas of application or short-term protection.

AquaSafe 25 m:
Ideal for medium protection requirements with a quick set-up time.

AquaSafe 50 m:
The most powerful variant for comprehensive protection measures – one pallet is sufficient for 50 meters of flood protection.

Scope of delivery

Each AquaSafe system is supplied in practical packaging units that ensure quick and uncomplicated handling. The scope of delivery includes

• Pre-assembled mesh modules:
  Each unit comprises 5 pre-assembled modules that can be easily connected together. The sturdy grid modules are made of high-quality, zinc and aluminum-coated wire, which is durable and corrosion-resistant.
• Multi-layer polymer containers / bags:
  These water-resistant containers are filled with water on site and offer a high level of stability and impermeability thanks to their own weight. They are reusable, particularly robust and a central component of the system.
• Fastening elements:
  The scope of delivery includes reusable connectors that ensure the mesh modules are held securely in place. These connectors ensure a stable connection, even under extreme conditions such as strong winds or high water pressure.
• Spirals:
  In addition to the connectors, the spirals make it easy to assemble the modules. They securely fix the individual elements and are designed so that they can be quickly assembled and disassembled.
• Protective tarpaulin:
  A large protective tarpaulin is also included. It provides additional protection against dirt, stabilizes the entire system and makes dismantling easier as it prevents the ingress of mud or dirt.
• Reusable plastic pallet (for 25 m and 50 m):
  The 25 m and 50 m versions are supplied on a robust, reusable plastic pallet. This pallet ensures easy transportation and space-saving storage. It is also extremely durable and can be used multiple times.

Logistics details:

• AquaSafe 5 m: One packaging unit per pallet.
• AquaSafe 25 m: Five 5 m modules on one pallet.
• AquaSafe 50 m: Ten 5 m modules on one pallet.
  All packaging units are compact (1x1x1.8 m) and enable space-saving storage and easy transportation

Why AquaSafe?

• Efficiency: Minimum time and personnel expenditure with maximum protection.
• Sustainability: Reusable materials and no disposal costs.
• Flexibility: Suitable for a wide range of applications and terrain types.
• Cost savings: Invest once, use in the long term.
